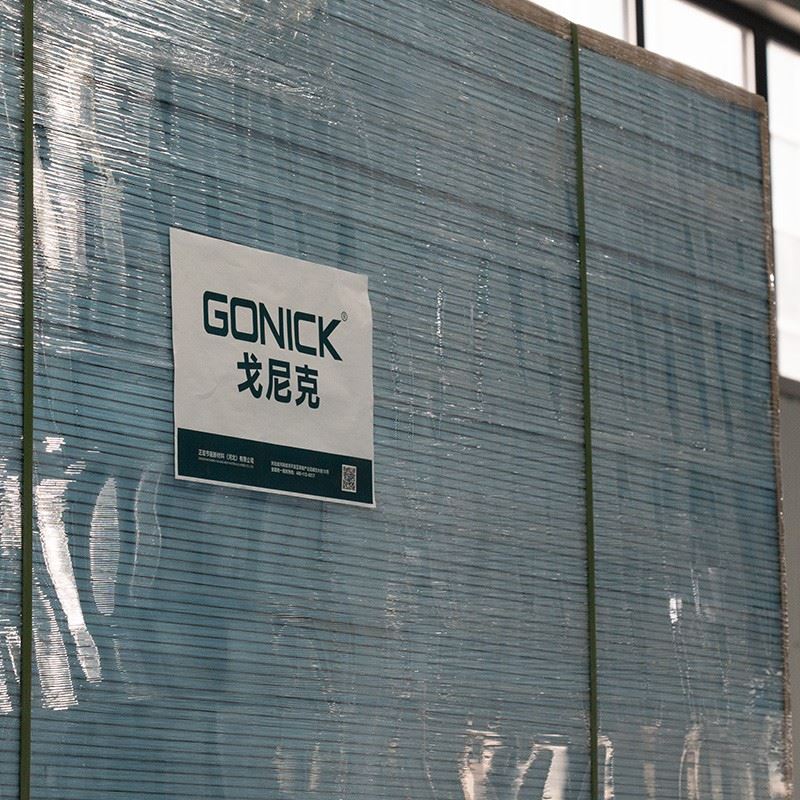

Waterproof Backing Substrate

In terms of market specifications, waterproof backing substrates offer a relatively standardized size system and a range of thickness options. Standard sheet sizes are typically 1200×600mm, 1220×2440mm, and 1200×2400mm, with some manufacturers supporting custom shapes (such as curved panels, corner panels, and shower bases). Thickness specifications cover a range of 6mm, 10mm, 12mm, 20mm, 30mm, 40mm, and 50mm. 6mm-12mm thicknesses are often used for thin-layer wall coverings, ceiling cladding, and lightweight partition wall finishes; 20mm-30mm thicknesses are suitable for wall leveling, pipe insulation, and prefabricated trench insulation for underfloor heating; and 30mm-50mm thicknesses are commonly used for floor leveling, load-bearing backing, or external wall insulation systems.

From a performance perspective, high-quality waterproof backing substrates possess multiple core indicators: extremely low water absorption (volume ratio ≤1.0%, high-density XPS core material can reach ≤0.5%), excellent dimensional stability (deformation ≤2.0% under 70℃, 48h conditions), moisture content ≤8%, thickness expansion rate ≤0.15% after 24 hours of immersion in water, fire resistance rating mostly B1 (cement-based can reach A level), overall weight only 40%~70% of traditional boards, and the surface can be directly tiled after roughening or coating without the need for an additional leveling layer.

Why can waterproof backing substrates replace traditional boards?

Waterproof backing substrates typically employ a three-layer composite structure of XPS extruded polystyrene core material combined with a polymer cement coating and alkali-resistant fiberglass mesh. This design gives it physical properties unmatched by traditional materials: 100% water repellency, completely eliminating mold: Unlike ordinary cement boards that absorb moisture and become damp, this board has a closed-cell rate of over 99% and a volume water absorption rate of less than 1%. Even when submerged in water for extended periods, its interior remains dry, fundamentally eliminating the breeding ground for mold.

Extremely lightweight, improving construction efficiency by 50%: With a density only 1/3 that of traditional cement boards, it can be easily moved and installed by a single person. Its dry-process construction eliminates the need for on-site plastering and leveling, as well as curing time. Waterproofing procedures that previously took two to three days can now be completed in half a day.

Built-in insulation for greater energy efficiency and comfort: The XPS core material itself is an excellent insulation material (thermal conductivity as low as 0.03 W/(m·K)). When laid on underfloor heating, it effectively reduces heat loss downwards; when installed on bathroom walls, it eliminates the cold feel of tiles.

Super strong nail-holding power for safer hanging: The polymer mortar layer with a specially hardened surface has high flexural strength. Combined with specialized expansion bolts, it can securely hang smart toilets, bathroom cabinets, large showerheads, and even electric towel racks without the risk of falling.

The waterproof backing substrate comes with a simple installation plan. Joints are treated with specialized waterproof sealant and sealing tape, eliminating the need for multiple layers of waterproof membrane. This simplifies the construction process and reduces the risk of leakage due to human error. Compared to traditional multi-layer waterproofing priming, it offers a more cost-effective overall solution with a very low probability of rework and maintenance, resulting in significant long-term cost savings. The product specifications cover a variety of standard lengths, widths, and thicknesses, suitable for everything from small apartments to large-scale renovations in shopping malls and hotels. Special sizes can also be customized to meet project requirements.

In terms of application, the waterproof backing substrate uses a dry, quick-installation process: First, prepare the hard substrate (remove dust and ensure it is flat and dry). Cut the substrate to size using a diamond blade, leaving a 2-3mm expansion joint. Secure it with stainless steel self-tapping screws and washers or a specialized waterproof adhesive (approximately 30cm spacing on walls). Double-seal the joints with self-adhesive alkali-resistant mesh fabric and P8 waterproof strong adhesive or a liquid waterproof membrane (such as K11 or polyurethane). Finally, apply a thin layer of tile adhesive directly to the surface. This system can not only handle wall waterproofing and leveling in one go, but also act as a decoupling layer to block stress transmission between the base layer and the finish, greatly reducing the risk of hollow tiles, cracked slabs and moldy walls. It is especially suitable for the rainy season in the south, underfloor heating rooms in the north, coastal salt fog areas and moisture-proof renovation projects for old houses.
