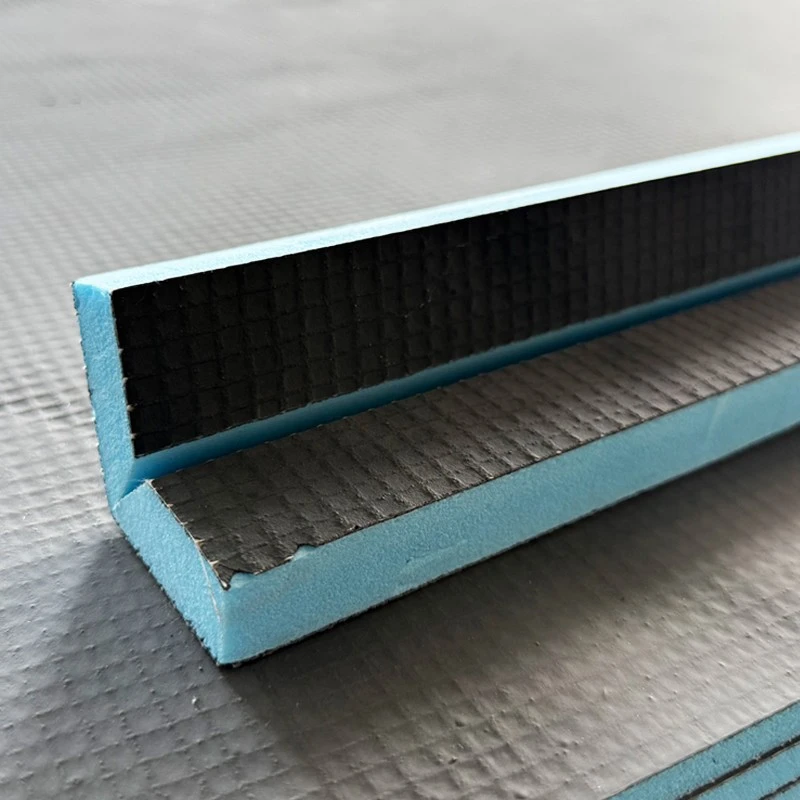

XPS Tile Backer Board

Standard fiber-cement boards are heavy, making on-site handling and cutting laborious; they also offer limited waterproofing and are prone to mold and warping after prolonged exposure to moisture. Standard gypsum boards have poor moisture resistance and are generally unsuitable for wet areas. Other materials may lack thermal insulation properties, leading to condensation in regions with significant temperature fluctuations, which can eventually cause wall delamination and tile detachment. This XPS Tile Backer Board features an extruded polystyrene (XPS) core sandwiched between layers of fiberglass mesh and a cement-based coating. It combines waterproofing, thermal insulation, and load-bearing capabilities to provide a stable substrate for tiling, making it perfectly suited for a wide range of dry and wet renovation scenarios.

The board utilizes an XPS (extruded polystyrene) core characterized by a dense, closed-cell structure and extremely low water absorption, inherently providing excellent water resistance. The outer layers consist of alkali-resistant fiberglass mesh covered with a cement-based mortar finish; this rough, porous surface ensures strong adhesion for tile adhesives, guaranteeing a secure bond and eliminating concerns about future delamination or tile detachment. Significantly lighter than cement backer boards, the material is easy for workers to cut and shape on-site using standard tools, thereby boosting construction efficiency-a tangible advantage for job sites. Furthermore, the board offers excellent dimensional stability, resisting expansion and contraction caused by temperature and humidity fluctuations, which reduces the risk of wall cracking.

In terms of performance, the board integrates both waterproofing and thermal insulation properties. The closed-cell XPS core has low thermal conductivity, helping to minimize condensation on the wall surface after installation; this protects the wall structure while enhancing indoor thermal insulation; The material is non-absorbent and resistant to mold growth, ensuring it does not soften or rot easily, even in continuously damp environments like showers. These boards can be applied directly to walls and floors or used to construct shower bases and recessed niches, offering excellent versatility in shaping. Seams are sealed using specialized waterproof tape and coatings, creating a continuous waterproofing system that effectively eliminates the risk of water leakage.

Regarding material selection, we offer XPS core versions in various densities to meet different load-bearing requirements. Standard models are lightweight and cost-effective, making them ideal for residential bathroom and kitchen walls. High-density reinforced models offer superior compressive strength, suitable for flooring and public restroom applications where greater load-bearing capacity is required;A wide range of thicknesses is available-including common specifications such as 6mm, 10mm, 12mm, and 20mm-allowing clients to select the right product based on thermal insulation needs and substrate leveling requirements. Boards are supplied in standard sizes but can also be custom-cut to suit specific project construction plans.

We provide export services for XPS tile backer boards to overseas building contractors, construction material distributors, and brands, offering OEM customization and manufacturing based on provided samples. Standard specifications are kept in stock, with a typical delivery lead time of 10–15 working days; For large-scale projects, we can arrange staggered deliveries to align with construction schedules.

Products are wrapped in moisture-resistant film and secured on heat-shrink-wrapped pallets, making them suitable for sea freight and long-distance transport; We maintain long-standing partnerships with multiple international freight forwarders, enabling us to provide optimal logistics solutions tailored to destination ports and specific project site conditions.
